SERIES      [ AE ]      [ AX ]      [ AX-V ]      [ AX-Z ]      [ FX ]      [ TE ]      [ TX ]


A-E5 Integrated Amplifier
30 watts with .007 THD
Super A
Weight: 8.6 lbs
Width: 13 3/8" Height: 2 5/16" Depth: 11 1/8"


AX-1100 120 watts with .003 THD integrated amplifier
Dynamic Super A with GM driver
3 digital inputs
MM / MC phono settings
COMPU LINK
Weight: 44.1 lbs
Width: 18 3/4" Height: 6 9/16" Depth: 17 7/16"


AX-90 Integrated Amplifier
Dynamic Super A with GM driver
Seven-band SEA equalizer with SPI display
Remote control
COMPU LINK


A-X500 Integrated Amplifier
Dynamic Super A
Seven-band SEA equalizer
SEA recording
Connections for 2 pairs of speakers


AX-V1050 150 watts stereo with .009 THD integrated amplifier
100W front, 80W center, 60W rear with .08 THD
Dynamic Super A with GM driver
5 digital inputs and 2 digital outputs
On-screen display and Dolby ProLogic
Programmable A/V remote and COMPU LINK
Weight: 35.1 lbs
Width: 17 13/16" Height: 6 13/16" Depth: 17 7/16"


AX-Z1010 100 watts with .004 THD integrated amplifier
Digital Pure-A with K2 processing
3 digital inputs and DAC Direct
COMPU LINK
Remote
Weight: 37.1 lbs
Width: 17 13/16" Height: 6 13/16" Depth: 18 1/8"

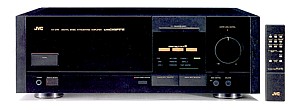

AX-Z911 100 watts with .003 THD integrated amplifier
Digital Pure-A with GM driver
3 digital inputs and DAC Direct
COMPU LINK
Remote
Weight: 32.5 lbs
Width: 17 13/16" Height: 6 9/16" Depth: 17 1/2"


FX-1010 Quartz PLL tuner
Opticalink
Station name display
COMPU LINK
Weight: 8.2 lbs
Width: 17 3/16" Height: 3 15/16" Depth: 11 3/4"


FX-1100 Quartz PLL tuner
Opticalink
Station name display
COMPU LINK
Weight: 8.2 lbs
Width: 17 3/16" Height: 3 15/16" Depth: 11 3/4"

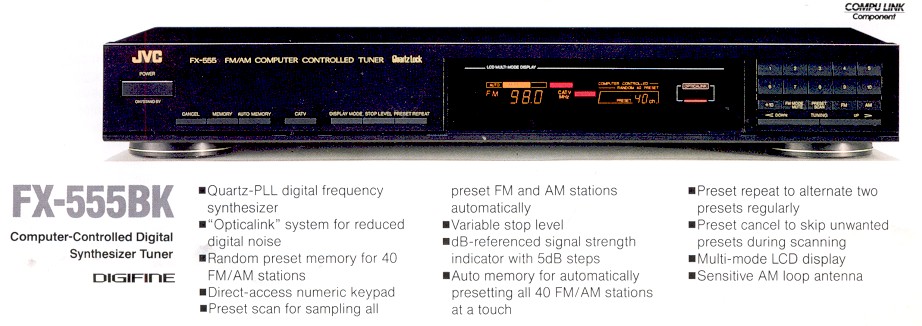

FX-555 Quartz PLL tuner
Opticalink
COMPU LINK
Weight: 8.2 lbs
Width: 17 3/16" Height: 3 15/16" Depth: 11 3/4"

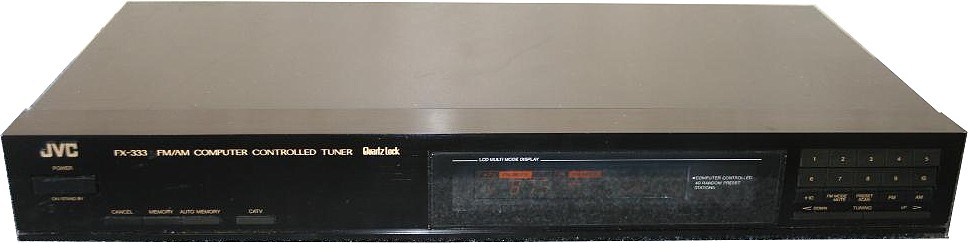

FX-333 Quartz PLL tuner
40 presets with preset scan
COMPU LINK

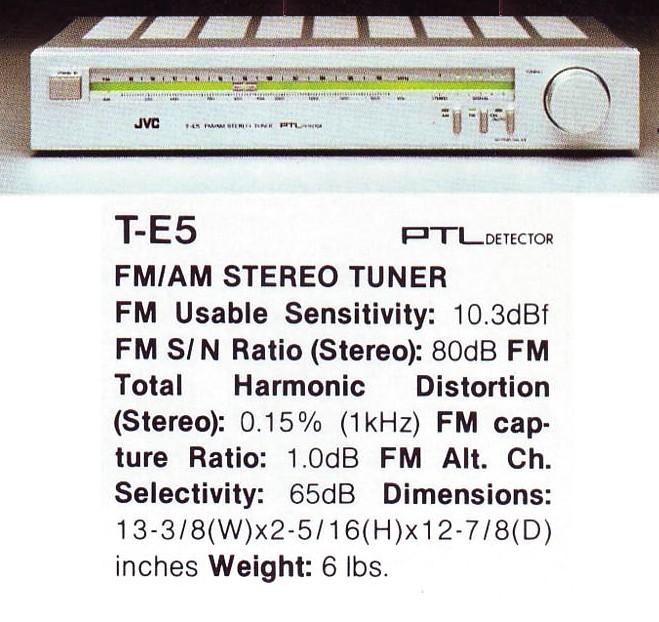

T-E5 AM / FM Tuner
PTL detector
Weight: 6 lbs
Width: 13 3/8" Height: 2 5/16" Depth: 12 7/8"


T-X900 AM / FM quartz lock tuner with 30 presets
Multi antenna select and Rec cal
FM auto mute
LED digital signal strength meter

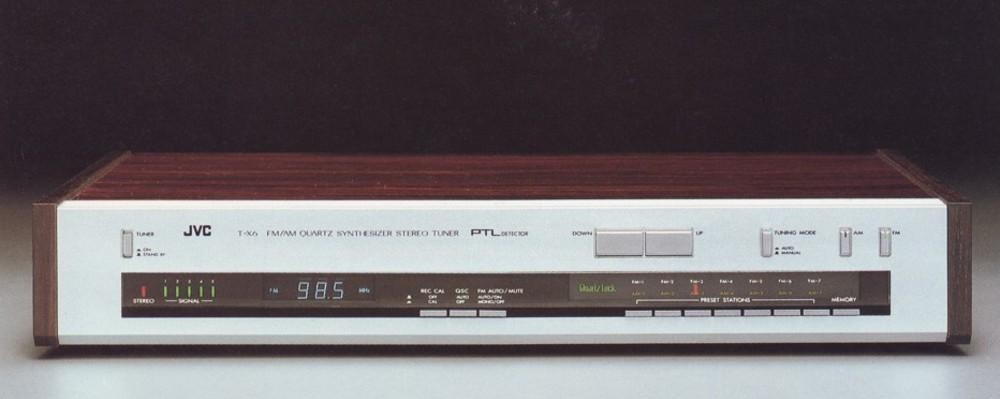

T-X6 AM / FM quartz lock tuner with 14 presets
PTL detector and Rec cal
QSC and FM auto mute
Signal strength meter


T-X30 AM / FM quartz lock tuner with 7 presets
